More Max-min Problems

 Sometimes, in the process of working on one problem, which may not be a max-min problem at all, one may stumble onto an interesting max-min problem.  This can occur naturally in a Maple worksheet.  Just take a problem in which you need to calculate a quantity in terms of some given quantities.  Then make one of the given quantities a variable quantity and go through the calculation.  At the end, you have obtained a formula expressing the desired quantity as a function of the variable quantity.  Then you can study the behavior of this function with plot and diff, locating any extreme values it may possess.  Here is an example.

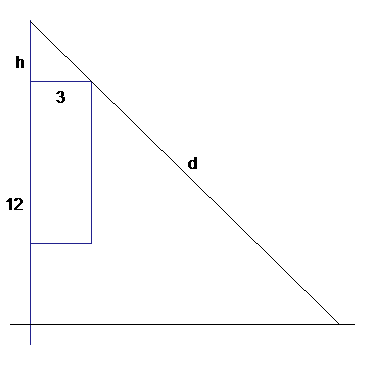

  A Ladder Problem:  A 20 foot ladder is leaning against the top corner of a bay window in such a way that the top of the ladder is just resting against the wall of the house, and the base of the ladder is on the ground.  The top corner of the window is 3 feet out from the house and 12 above the ground.  How high up on the wall is the top of the ladder touching?

>

restart;

>	with(plots):

>	A1:=plot({[[0,15],[0,-1]],[[0,12],[3,12],[3,4],[0,4]]},color=navy):

>	A2:=plot({[[-1,0],[16,0]],[[0,14.937],[15.257,0]]},color=black):

>	A3:=textplot({[-.5,13,'h'],[8,8,'d'],[-.75,6,`12`],[1.5,11.25,`3`]}):

>	display({A1,A2,A3},axes=none,scaling=constrained,style=line);

>

Solution:

Let's parameterize this problem by changing the length of the ladder to a parameter, say d.  If we set up a coordinate system so that the wall is the positive y-axis, the ground is the positive x-axis, and the corner of the bay window is at (3,12), then by similar triangles,   h/sqrt(h^2+3^2) = (h+12)/d , where h+12 is the height above the ground the ladder touches the wall.  Let's let Maple do some work.  First set up the equation and simplify it.

>

restart;

>	eq := h^2/(h^2+9) - (h+12)^2/d^2;

>

Let's manipulate eq a little.

>	eq := (collect(numer(normal(eq)),h));

>

If we solve for the height above the wall, h, in terms of the length of the ladder, d, we get more extraneous solutions than if we solve eq for d in terms of h.

>	sol := [solve(eq,d)];

>

Clearly, we are interested in the positive values for d, ie, .

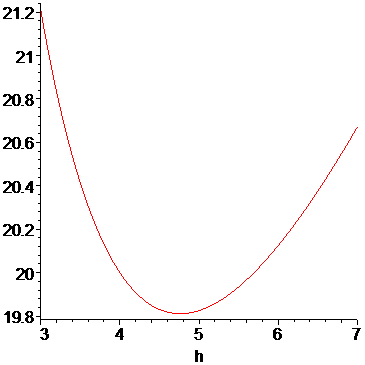

>	plot(sol[1],h=3..7);

>

Upon examination of the graph, we see that there are two solutions to the original problem.  In fact, and this is clear if we reflect on the situation, there will generally be two positions the ladder can occupy if it is long enough, no positions if it is too short, and exactly one position if the ladder exactly the right length.  That length is slightly under 20 feet, the y-coordinate of the base of the graph.  We can discover this length easily.

>	hmin := fsolve(diff(sol[1],h),h,4..5);

This gives the height above the bay window that the ladder touches.

>	dmin := subs(h=hmin,sol[1]);

>

So, we have stumbled onto the solution of the problem of finding the shortest ladder such that there is a solution to the problem.

Wandering Critical Points:  For the cubic , plot in the same window the graphs of f for several positive values of a.  What happens to the local extreme points and the inflection points of f as a increases from 0 towards infinity?  Also, try to use the word animate to do the same thing.

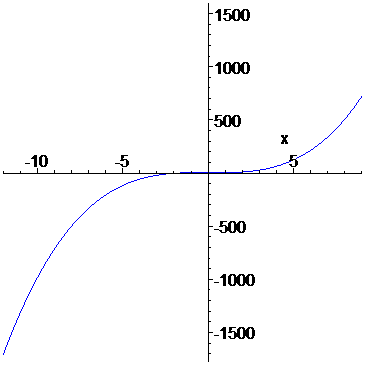

>	plots[animate](x^3+a*x^2-x+3,x=-12..9,a=0..10,color=blue);

>

  Asymptotes

Make a sketch of the function     .  Find all asymptotes of the function.  Also, find the intercepts, the local maxima, local minima, and inflection points of the function.

>

>

 T wo Pigpen problems

 Pigpen I:  A pigpen (shed for holding pigs) is to be shaped like a box with no floor and no front.  The top is to be square, and the volume is to be 18 cubic yards.  What dimensions should the pigpen have in order to minimize the amount of material used to construct it?

>

>

Pigpen II:  Instead of requiring the top to be square, suppose we want the top to be b times as wide as it is long, where b is some fixed positive number.  Find the minimum amount, A, of material needed to construct such a pigpen as a function of b.  Draw a conclusion about the most economical shape for the top of the pigpen.

>

>

  Big Clock Problems

 Big Clock I: A tower clock has a 4 foot minute hand and a 3 foot hour hand.  How fast are the tips of the hands moving apart at 12:15?

>

>

Big Clock II: At what time are the hands moving apart most quickly?

>

>

Wandering points

Define the function and compute its derivatives.

>

restart;

>	f:= x -> x^3 + a*x^2 - x + 3;

>	fp := unapply(diff(f(x),x),x);

>	fpp := unapply(diff(f(x),x,x),x);

>

Let's plot f over x from -6 to 4 and  a from 0 to 5.

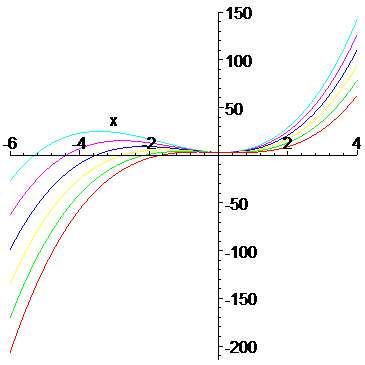

>	plot({seq(f(x),a=0..5)},x=-6..4); a := 'a':

>

Looking at the graphs suggests that the local maximum (the leftmost critical point) wanders off to the left and drifts upward.  The other critical point and the inflection point seem to stay stationary, although that may be an illusion.  Let's calculate the points and look at their limits as a goes to infinity.  First, find the x-coordinates of the critical points and the inflection point.

>	cp := solve(fp(x),x);

>	ip := solve(fpp(x),x);

>

We can see that as a gets large, and  go to 0 and   , respectively.

>	limit(cp[1],a=infinity);

>	limit(cp[2],a=infinity);

>

The local minimum of  as a approaches  is (0,3), and the local maximum and inflection points head towards ( ), with the inflection point roughly halfway between the two extrema.

 To observe the graph of  as increases (for example, from       to    ) is a great problem for using the word animate.  Here is a sample of what you might have done.  Once you have activated the animate plot press your pointer on the 'once' button to make the animate plot 'loop'.

>	plots[animate](x^3+a*x^2-x+3,x=-12..9,a=0..10,color=blue);

>

  Pig Pen II

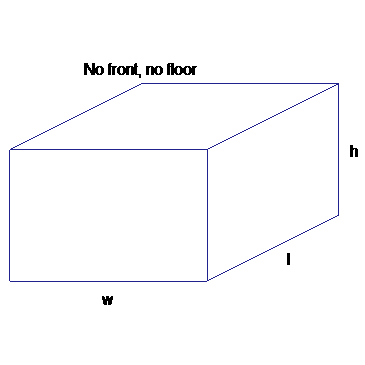

First draw a picture

>	A1:=plot({[[0,0],[0,2],[2,3],[5,3],[5,1],[3,0], [3,2],[0,2]],[[0,0],[3,0],[3,2],[5,3]]},color=navy):

>	A2:=plots[textplot]({[1.5,-.25,'w'],[4.25,.35,'l'], [5.25,2,'h']},color=black):

>	A3:=plots[textplot]([2,3.25,`No front, no floor`],color=black):

>	display({A1,A2,A3},axes=none,scaling=constrained);

>

We are given that the length I of the pen is bw, where b is a fixed positive number.  The problem is to minimize the area,    , of the pen subject to the constraint that the volume,   V=hlw , of the pen is 18 cubic feet.

>

restart;

>	A := 2*h*l + h*w + l*w;

>	l :=  b*w;

>

Now the area is expressed as a function of the height and width of the pen. But the height of the pen is h = 18/(lw) from the constraint equation.  Let's substitute for h and turn A into a function.

>	A := unapply(subs(h=18/(l*w),A),(b,w));

>

Plotting the area function for various values of b

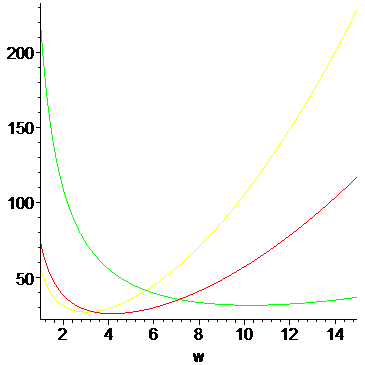

>	plot({A(1,w),A(1/2,w),A(1/10,w)},w=1..15);

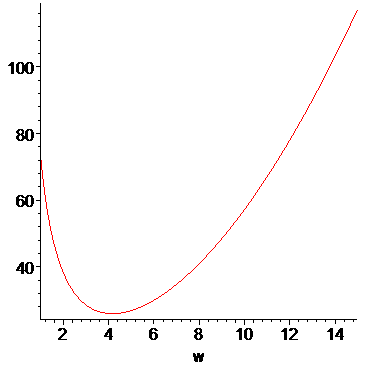

>	plot(A(1/2,w),w=1..15);

>

'might' lead one to suspect that the minimum of the minimums      occurs at    .  We can express     as a function of b.  First, find the width    of the pen with minimum area.  That will occur at the real root of     .  Then substitute that in for w in A.

>	Aw := normal(diff(A(b,w),w));

>	w[b] := ((9+18*b)/b^2)^(1/3);

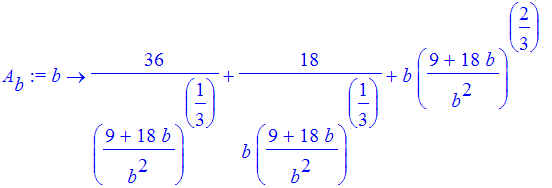

>	A[b] := unapply(A(b,w[b]),b);

>	fsolve(diff(A[b](b),b),b,0..1);

>

 Indeed, our suspicion pans out.

   Big Clock II .

 By the law of cosines, the distance s between the tips of the minute hand and the hour hand is

>

restart;

>	s := sqrt(3^2+4^2 - 2*3*4*cos(theta));

>

where  is the angle between the hands.  This angle is a linear function of time t measured in minutes.  At     the angle is 0 radians and after  minutes the angle is  radians, so in general,

>	theta := (11/12)*(2*Pi/60)*t;

>

To find when the distance between the minute hand and hour hand is increasing most rapidly, lets think through what happens.  At 12:00, the hands are together, but the minute hand is moving away from the hour hand.  Actually they are both moving to the right, but the minute hand moves 12 times faster.  The time at which the distance between the two hands are increasing most rapidly would be when the second derivative of s with respect to time is zero.  This will  occur sometime before the hands are pointing in opposite directions, which works out to be  minutes past 12.

>	sp := diff(s,t);

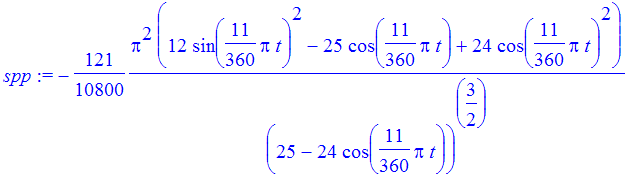

>	spp := normal(diff(sp,t));

>	ti := fsolve(spp,t,0..30*12/11);

>	evalf(subs(t=ti,sp));

>	evalf(subs(t=ti,s));

>

>

So at about 7.529 minutes after 12, the distance between the tips of the minute hand and the hour hand is increasing at the maximum rate of about .288 feet per minute.  Also, the tips are about 2.65 feet apart at that time.
